Description
The Extra Large Workstation is ideal for mobile repairers, large enough for motorhomes, Trucks and machinery. Also suitable for an isolation chamber for Window Tinting, vehicle Wraps, etc.
The Workstation is effectively a fully functioning mobile paint booth using a 3180 CFM air supply unit and industry standard filter media both on the input and exhaust.
Find out more about the benefits of Carcoon workstations which are available in a range of sizes for a variety of purposes.
Features & Specifications
The New Sealed Workstation has all the features of the traditional Workstation with the added benefit of not requiring a constant pressure fan. The sealed main body of the Workstation once inflated will hold pressure for weeks at a time. A built in over pressure valve protects against variations in pressures caused by heat and cold.
Our Latest drive in Workstation Features a massive 16.63 m2 of filter area. The total paint arrest filter area is 10.77 m2 (four filters). Two carbon filters add an additional 2.39 m2 helping to eliminate odours from the workstation. The two massive input filters combine for another 3.85 m2.

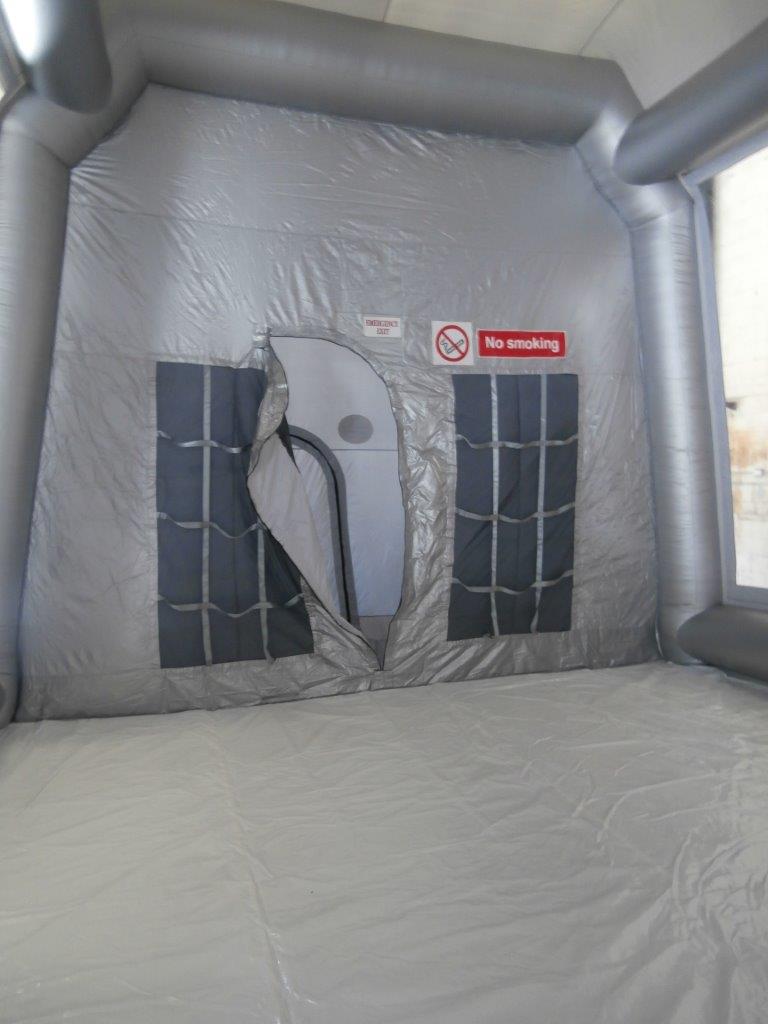

Input Filters with airdock behind
Exhaust filtration system; 6 x Filters
- Cross flow ventilated mobile Workstation
- Designed to help the S.M.A.R.T.(mobile) Repairer comply with Health and Safety and Environment Protection
- Designed to improve working conditions and productivity
- Workspace – 11.34m x 4.73m, 4.11m high access
- Total footprint 12.27m x 5.67m, 4.62m High
- Weight; Workstation 130kg, Fan units 1 x 19.5Kg & 2 x 16.3Kg.
Materials
- PVC Glass clear-frame retardant-antistatic additive
- Light weight specially coated Nylon and Polyester
- Heavy duty PVC coated polyester base material
- Splash proof 8mm coil type closers.
Air Supply
- Inflator/Deflator fan, 2000 watts, 2000 litres per min, 4.5 kg 32 cm x 17 cm h x 26 cm
- Max Air Supply 1 H.P 3180 CFM 6.5 Amp 230 volt 3 speed 50Hz size 48x48x50cm weight 19.5Kg
- Air changes, every 3 minutes
- Input Filters : surface area 3.85 m2
- Type : G4 synthetic media
- Exhaust filter trap : surface area 10.77 m2
- Type : Synthetic Media Paint Arrest
- Activated Carbon return to atmosphere
- Type : Carbotec RT20 Foam.
